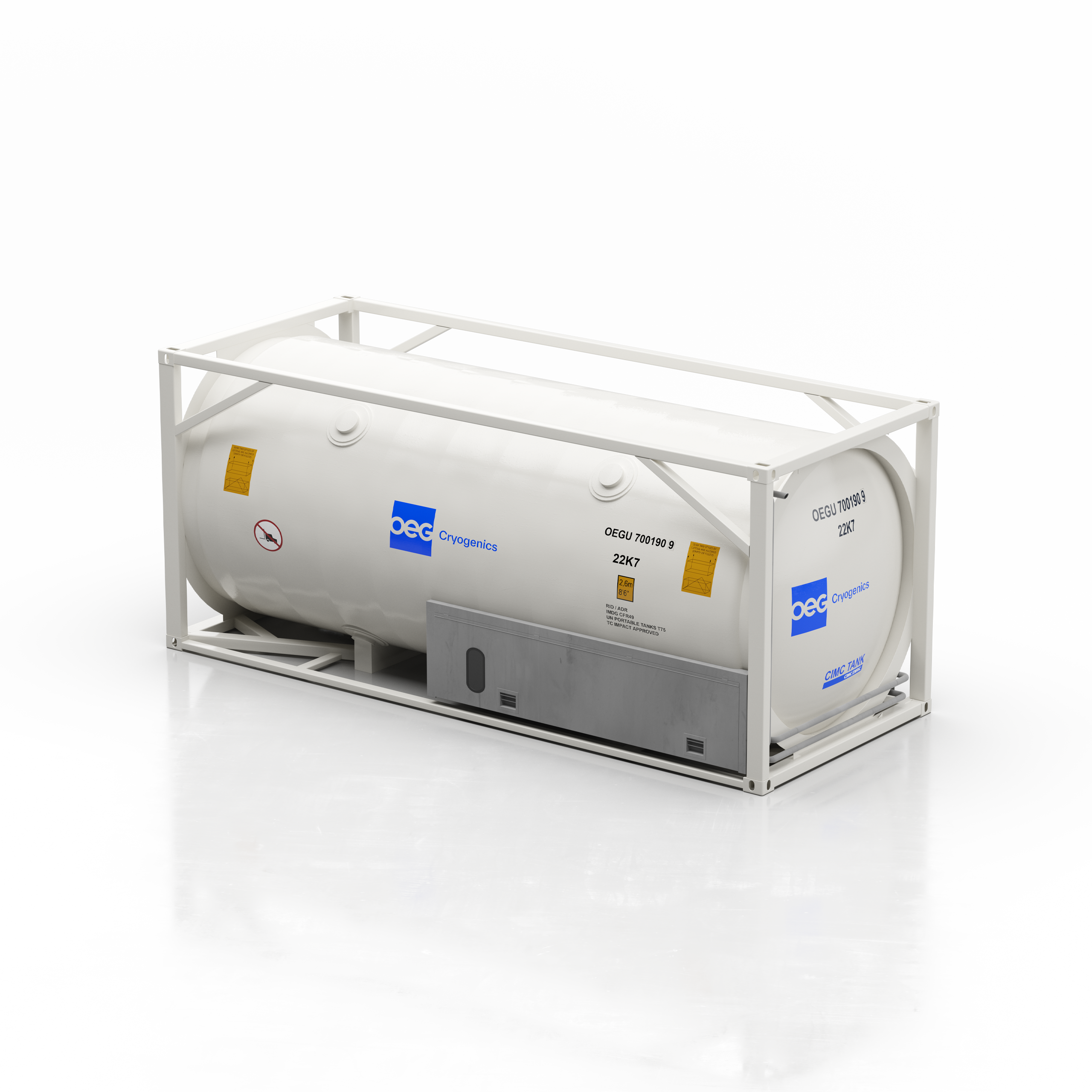

Cryogenic ISO Tank Containers
OEG cryogenic tank containers provide sustainability, safety and efficiency in the industrial gas supply chain network. Cryogenic tank containers are deployed in the liquefied natural gas (LNG) market for the following applications: storage, ship bunkering, cooldown of storage facilities, mobile fuel stations and virtual pipelines.
Why use OEG Cryogenic tanks?
Our OEG Cryogenic tank containers offer state-of-the-art equipment of 22 bar pressure, thus giving the capability to load and transport a wider range of liquified natural gas (LNG) products namely Nitrogen, Argon, Oxygen, CO₂, N20, LNG and Ethylene. Furthermore, our tanks are robust and flexible to use and offer optimal payload performances and innovative solutions.
Furthermore, our tanks are also fitted with pressure build-up units which can be augmented by additional skid-mounted pressure build up units (PBUs) to meet the challenges of unloading with sufficient differential pressure.
Meeting international standards
All our cryogenic tanks comply with all international regulations such as RID/ADR, IMDG, ASME V111 DIV 1, US DOT CFR 49 , TIR , TC , CCC, CSC , LR plus additional Australian National Registration and Malaysian DOSH-PMT.
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| 20FT T75 CRYOGENIC ISO TANK CONTAINER | 6058 x 2438 x 2591 | 8900 | 27300 | 36000 |
| 40FT T75 CRYOGENIC ISO TANK CONTAINER | 12192 x 2438 x 2591 | 12200 | 21800 | 34000 |
